| ブランド名: | GUKE |
| モデル番号: | 日立 4364914 |
| MOQ: | 1キット |
| 価格: | 交渉可能 |
| 梱包の詳細: | 内側のPPバッグ、外側のカートンボックス |
| 支払い条件: | T/T、ウェスタンユニオン、ペイパル |
Guangzhou GUKE Construction Machinery Co., Ltd. brings over a decade of industry expertise as a specialized supplier focused on sealing components and comprehensive construction machinery parts.
We leverage robust supply channels to provide a wide range of sealing products from leading brands such as N-0-K, SKF, and HAILLITE, coupled with professional technical support. Complementing this, our own 20-year experienced factory enables us to deliver cost-effective both standard and custom-made sealing components.
By integrating multi-brand supply with in-house manufacturing, we are positioned to be your reliable and agile supply chain partner.

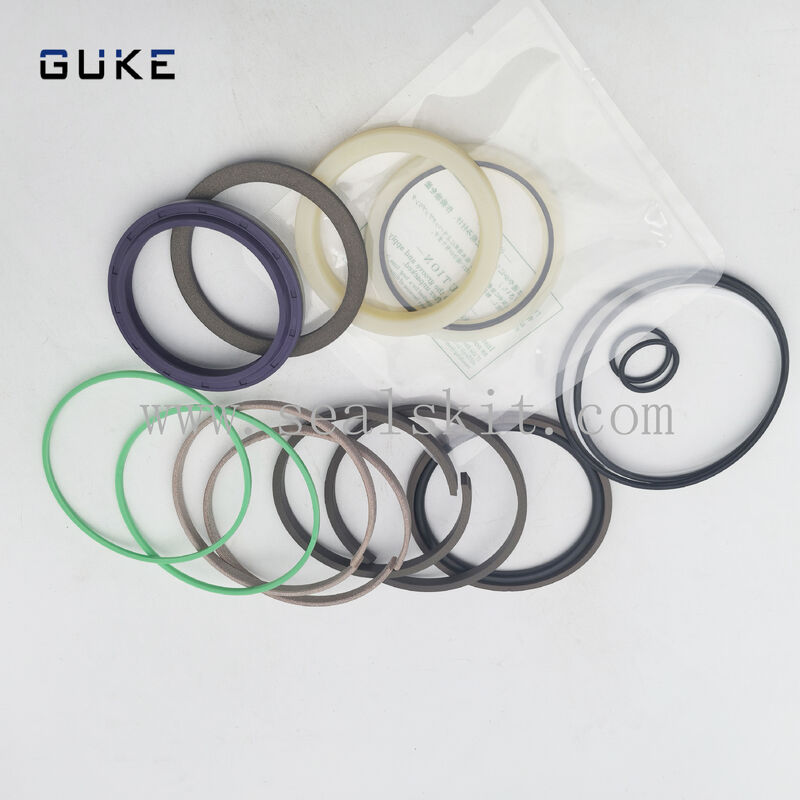

| Name | Bucket Cylinder Repair Seal Kit 4364914 |
| Condition | 100% New |
| Material | NBR, Nylon, Phenolic-Fiberboard, PU, Iron |
| Machine Model | Hitachi Excavator EX120, EX130, EX140 |
| Part Number | 4364914 |
| Size | Standard Size |
| Application | Bucket Cylinder |
| OEM | Acceptable |
| Availability | In Stock |
| Shipping | Express, By Air, By Sea |
| Pos. | Part No | Qty | Parts Name |
|---|---|---|---|
| 4316457 | 1 | CYL.;BUCKET | |
| 1 | 667101 | 1 | TUBE;CYL. ASS'Y |
| 1A. | 667102 | 1 | TUBE;CYL. |
| 1B. | 4365897 | 2 | BUSHING;PIN |
| 2 | 667103 | 1 | ROD;PISTON ASS'Y |
| 2A. | 667104 | 1 | ROD;PISTON |
| 2B. | 4365448 | 2 | BUSHING;PIN |
| 3 | 667105 | 1 | HEAD;CYL. |
| 4 | 310604 | 1 | BUSHING |
| 5 | 4510494 | 1 | RING;RETAINING |
| 6 | 409104 | 1 | RING |
| 7 | 225611 | 1 | PACKING;U-RING |
| 8 | 225612 | 1 | RING;BACK-UP |
| 9 | 667106 | 1 | RING;WIPER |
| 10 | A811090 | 1 | O-RING |
| 11 | 310606 | 1 | RING;BACK-UP |
| 12 | 667107 | 10 | BOLT;SOCKET |
| 13 | 409106 | 1 | PISTON |
| 14 | 310608 | 1 | RING;SEAL ASS'Y |
| 15 | 0409107 | 2 | RING;BACK-UP |
| 16 | 0667108 | 2 | RING;SLIDE |
| 17 | 0310610 | 2 | RING |
| 18 | 326007 | 1 | SHIM |
| 19 | 667109 | 1 | NUT |
| 20 | 310612 | 1 | SCREW;SET |
| 21 | 111818 | 1 | BALL;STEEL |
| 23 | 409111 | 2 | RING;WIPER |
| 25 | 409112 | 2 | RING;WIPER |
| 26 | J75481 | 2 | FITTING;GREASE |
| 27 | 409113 | 1 | JOINT |
| 28 | 667110 | 1 | PIPE |
| 29 | 4509181 | 2 | O-RING |
| 30 | M340825 | 8 | BOLT;SOCKET |
| 31 | 667111 | 1 | BAND |
| 32 | 409116 | 1 | BAND |
| 33 | 408815 | 2 | BOLT |
| 34 | 325913 | 2 | WASHER |
| 35 | 310616 | 1 | HOLDER |
| 36 | 309022 | 1 | BOLT |
| 37 | 208516 | 1 | WASHER;SPRING |
| 38 | 409110 | 2 | BOLT |
| 100 | 4364914 | 1 | KIT;SEAL |
| 200 | 667112 | 1 | KIT;BAND |
